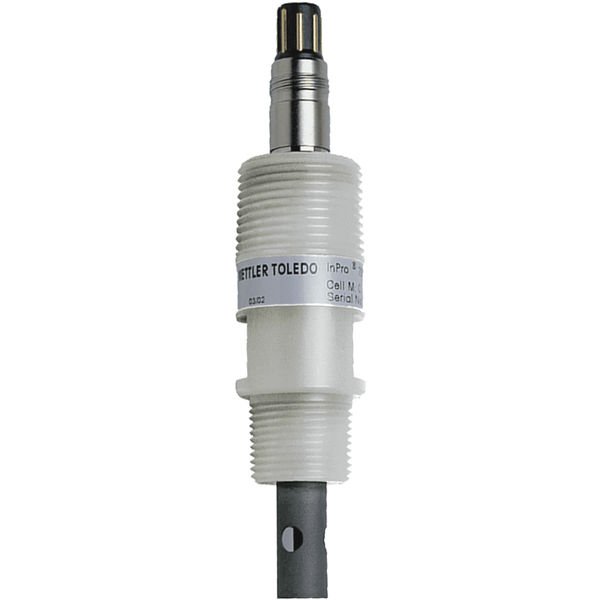

InPro7000-VPConductivity Sensor
Accurate Measurement of Water Purity.The InPro 7000-VP is a 2-electrode conductivity sensor designed for high accuracy measurement in very low to medium conductivity water.
Meets Chemical Industry Needs
This sensor is available in commonly-used process connections that meet chemical application needs with conductivity values up to max. 10mS/cm.
Highly Accurate and Cost Effective
The conductivity sensor is highly accurate, due to its NIST/ASTM-traceable cell constant and is extremely cost-effective thanks to its 2-electrode sensor design.
Wide Measuring Range
WideRange technology enables an almost universal use of this sensor, from ultrapure water to drinking water and salt solutions.
Specifications & Spare Parts
Specifications – Cond Sensor InPro7000-VP
| Temperature Sensor | PT 1000 |
| Cell Constant | 0.1 cm-1 |
| Cable Connection | Vario Pin (IP 68) |
| Cell Constant (nominal) | 0.1 cm–1 |
| Measurement Technology | Conductive |
| Process Connection | ¾ NPT, ⅛ inch NPT |
| Sterilizable | No |
| Operating Temperature (Fahrenheit) | 14…212 °F |
| O-Ring Material | Viton® (FDA) |
| Operating Temperature (Celsius) | -10…100 °C |
| Mechanical Pressure Resistance (PSI) | 500 psi (77 °F), 100 psi (203 °F) |
| Model Family | 2-electrode sensor |
| Hazardous Area Approvals | Yes |
| Measured Pressure Resistance | 100 psig @ 203 °F 493 psig @ 77 °F (34 barg @ 25 °C 7 barg @ 95 °C) |
| Electrode Material | Titanium |
| Measured Pressure Resistance | 0 bar – 34 bar |
| Primary Media/Application | Other Water Processes Pharmaceutical Waters |
| Hygienic/Biocompatibility Approvals | No |
| Mechanical Pressure Resistance (Bar) | 34 bar (25 °C), 7 bar (95 °C) |
| Sensor Material | Ti Grade 2 / PVDF |
| Cell Constant (accuracy) | ± 1.0% |
| Measurement Range | 0.02-10000 µS/cm |
