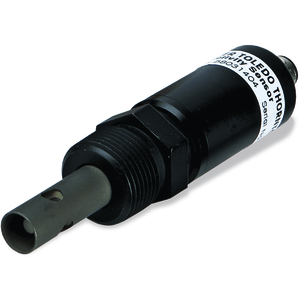

UPW 3/4NPT 0.1C Ti 2Conducitivity Sensor
Features
- 2-Electrode Resistivity Sensor
- Unequalled temperature compensated resistivity accuracy
- Enhanced METTLER TOLEDO Thornton resistivity measurement technology reduces signal noise from the UPW UniCond tenfold compared to other sensors
- Robust construction and temperature compensation ensures that observed changes in resistivity are due to water quality and not environmental factors
2-Electrode Resistivity Sensor.The UPW UniCond 2-electrode resistivity sensor was developed in collaboration with industry partners to provide best-in-class accuracy, stability, and environmental isolation in ultrapure water applications for the semiconductor industry.
Industry Leading Measurement Accuracy
The UPW UniCond sensor offers unequalled temperature compensated resistivity accuracy to provide the clearest possible picture of your water quality.
Best In Class Signal Stability
Enhanced METTLER TOLEDO Thornton resistivity measurement technology reduces signal noise from the UPW UniCond tenfold compared to other sensors in UPW.
Environmental Isolation
Robust construction and temperature compensation ensures that observed changes in resistivity are due to water quality and not environmental factors.
Specifications & Spare Parts
Specifications – Cond Sensor UPW 3/4NPT 0.1C Ti 2
| Temperature Sensor | Pt 1000 RTD, Class A |
| Cell Constant | 0.1 cm-1 |
| Stability | 0.003 MΩ∙cm standard variation typical after rinse-up |
| Measurement Technology | Conductive |
| Fitting material | PTFE/SS |
| Insertion length | 34mm |
| Model Family | 2-electrode sensor UniCond |
| Operating Range (MΩ-cm) | 1 MOhm – 50 MOhm |
| Accuracy | 1-10 MΩ·cm: ≤ ±1% compensated @ 25°C 30-50 MΩ·cm: ≤ ±1% compensated @ 25°C 10-30 MΩ·cm : ≤ ±0.5% compensated @ 25°C |
| Hazardous Area Approvals | No |
| Measured Pressure Resistance | 250 psig @ 200 °F (17 bar @ 93 °C) |
| Electrode Material | Titanium |
| Primary Media/Application | Semiconductor Water |
| Hygienic/Biocompatibility Approvals | No |
| Process fitting | ¾” NPTM |
| Electrode Configuration | 2-electrode |
