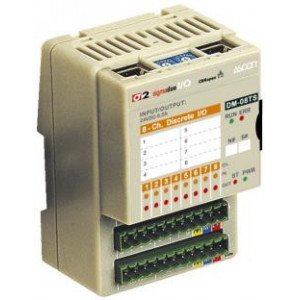

DM-08TS
8 Configurable Digital Inputs Or Outputs CANopen Or

Features

Get a quote

Features

DIN rail mount
8 Freely configurable inputs or outputs at 24Vdc
800V insulation between inputs
Powerful embedded processing capabilities including:
- Loop-back (input simulation) and alarms
- PWM and pulse output
- Pulse counting
- Pulse frequency and width measurement

Specifications & Spare Parts

Process Inputs	8 inputs or outputs opto-insulated and freely configurable – Sink (PNP) – UL (0 status): -3…+11/5 Vdc – UT (Transition): 5…11 Vdc – UH (1 status): 11… 30 Vdc Insulation class: 800V
Process Outputs	8 inputs or outputs opto-insulated and freely configurable – Source (PNP) – Output voltage (nominal): 24 Vdc – Output current: 0.5 A Insulation class: 800V
Power Supply	24VDC/VAC
Functions	Embedded processing capabilities: – Loop-back (input simulation) on Modbus version – Polarity Change – PWM output* – Latched inputs – Monostable inputs – Edge detect and interrupt – Pulse counting* – Pulse frequency measurements* – Pulse width measurements* – Pulse output* *Available only on two channels
Communication and Programming	Interfaces: – 2 field bus ports to CANOpen – 2 field bus ports to Modbus RTUProgramming/Configuration Tools: – Configuration software available for PC
Installation	Mounting Method: DIN rail mount Case Dimensions: 110 x 76 mm, depth 76 mm
Connections	Communication Port Connection: 2 FieldBus ports RJ45 Signals Connection: 2 Extractable 11 pole plugs 5.0 mm – Spring terminals – Screw terminals
Connectable to	– Sigmadue Series – SCADA for monitoring, traceability, and remote management – DX and DY gateways for remote monitoring
