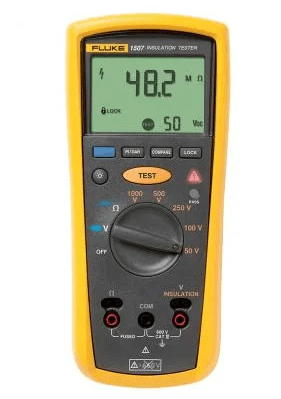

Fluke 1507 Insulation Resistance Tester, 50 to 1000 V

Features

  • Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians
  • Automatically calculates polarization index and dielectric absorption ratio
  • Makes repetitive tests simple and easy with a compare (pass/fail) function
  • Offers multiple insulation test voltages: 50, 100, 250, 500, and 1000 V
  • Performs insulation tests from 0.01 MΩ to 2.0 GΩ
  • Includes live circuit detection to prevent insulation test if voltage >30 V is detected

Get a quote

Fluke 1507 Offers

Ideal for advanced industrial and electrical insulation testing, this insulation tester comes in a compact design and features versatility. Additionally, the multiple test voltages facilitate the tool for many troubleshooting, commissioning, and preventative maintenance applications.

Take advantage of the full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and lightweight make it easy to pack and use. Additional features, like the remote probe, save both time and money, especially when performing repetitive tests.

Specifications & Spare Parts

Fluke 1507 Specifications

AC/DC Voltage Specifications
Range 600.0 V
Resolution 0.1 V
Accuracy 50 Hz to 400 Hz: ±(2% of rdg + 3 digits)
Input Impedance 3 MΩ (nominal), < 100 pF
Common Mode Rejection Ratio (1 kΩ unbalanced) >60 dB at DC, 50 or 60 Hz
Overload Protection 600 V RMS or DC
Earth Bond Resistance Specifications
Range 20.00 Ω to 20.00 kΩ
Resolution 0.01 Ω to 0.01 kΩ
Accuracy ±(1.5% + 3 digits)
Overload Protection 2 V RMS or DC
Open Circuit Test Voltage >4.0 V, <8 V
Short Circuit Current >200.0 mA
Insulation Specifications
Measurement Range 0.01 MΩ to 10 GΩ
Test Voltage 50, 100, 250, 500, 1000 V
Test Voltage Accuracy +20%, -0%
Short Circuit Current 1 mA nominal
Auto Discharge Discharge time <0.5 second for C = 1 µF or less
Live Circuit Indicator Inhibit test if terminal voltage >30 V prior to initialization of test
Maximum Capacitive Load Operable with up to 1 µF load
Live Circuit Detection Inhibit test if terminal voltage > 30 V prior to initialization of test
Maximum Capacitive Load Operable with up to 1 µF load
Measure Accuracy 50 V: ±(3% + 5)
100 V: ±(3% + 5)
250 V: ±(3% + 5)
500 V: ±(3% + 5)
1000 V: ±(3% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ
