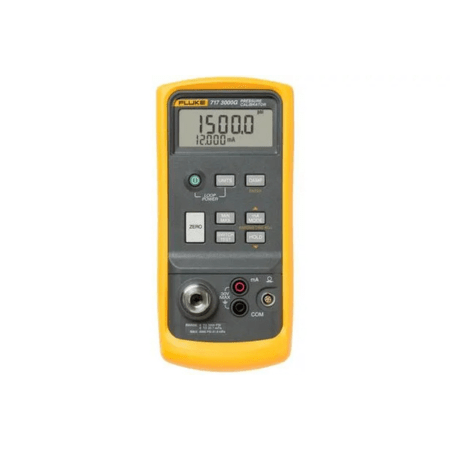

Fluke 717 Series for Pressure Calibration

Pressure Calibrators;
Delivers outstanding performance, durability and reliability.
Compact, lightweight, and easy to carry.

Get a quote

The Fluke 717 Pressure Calibrators delivers outstanding performance, durability and reliability. These calibrators are compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 717s are easy to use. They are EMI tolerant, dust and splash resistant, and feature a removable battery door for quick battery changes.These calibrators come in 9 models measuring pressure up to 5000 psi/345 bar and are compatible with Fluke 700Pxx differential, gauge and absolute pressure modules to increase functionality. Calibration

Features at a Glance

  • Measure pressure, 0.05% of full scale with internal sensor up to 5000 PSI/345 bar sensor (5000G model)
  • Measure mA with 0.015% accuracy and 0.001 mA resolution, while sourcing 24V loop power
  • Measure pressure to 10,000 psi/700 bar using one of 29 Fluke 700Pxx Pressure Modules
  • 1/8 NPT female pressure fitting
  • Compatible with non-corrosive Gases and liquids
  • Select eleven different engineering units
  • Zero, min, max, and hold functions
  • Calibrate P/I instruments with simultaneous pressure and current measurement
  • Pressure switch test function captures set, reset and Deadband values of a pressure switch
  • Error% calculation of mA measurements for quick pass-fail decisions
  • Long lasting battery life
  • Holster features test lead storage
  • Compatible with Toolpack magnetic hanging system
  • New switch test

Industrial Technical Services from Mississauga, Ontario is a single source Instrumentation and Automation company. We provide certified calibrations, PLC programming, custom controls and Panels.

Specifications & Spare Parts

Measurement Accuracy
Pressure 717 Series
Measure Pressure (internal sensor)
Accuracy: 0.05% full scale
Functions: Zero, Min, Max, Hold, Damp
Note: Gasses / liquids (non-corrosive)Fluke 717 1G
Range: -1 to 1 PSI (-68.9 mbar to 68.9 mbar, -83 to 6.89 kPa)
Resolution: 0.0001 PSI, 0.001 mbar, 0.0001 kPa
Over Pressure: 5 X Full ScaleFluke 717 30G
Range: -12 to 30 PSI (-850 mbar to 2 bar, -83 to 206.84 kPa)
Resolution: 0.001 PSI, 0.1 mbar, 0.01 kPa
Over Pressure: 2 X full scaleFluke 717 100G
Range: -12 to 100 PSI (-850 mbar to 7 bar, -83 to 689.48 kPa)
Resolution: 0.01 psi, 0.1 mbar, 0.01 kPa
Over Pressure: 2 X full scaleFluke 717 300G
Range: -12 to 300 PSI (-850 mbar to 20 bar, -83 to 2068.42 kPa)
Resolution: 0.01 PSI, 1 mbar, 0.1 kPa
Over Pressure: 375 PSI, 25 barFluke 717 500G
Range: 0 to 500 PSI (0 mbar to 34.7 bar, 0 to 3447.38 kPa)
Resolution: 0.01 PSI, 1 mbar, 0.1 kPa
Over Pressure: 2 X full scaleFluke 717 1000G
Range: 0 to 1000 PSI (0 mbar to 69 bar, 0 to 6894.76 kPa)
Resolution: 0.1 PSI, 1 mbar, 0.1 kPa
Over Pressure: 2 X full scaleFluke 717 1500G
Range: 0 to 1500 PSI (0 bar to 103.4 bar, 0 to 10342 kPa)
Resolution: 0.1 PSI, 0.01 mbar, 1 kPa
Over Pressure: 2 X full scaleFluke 717 3000G
Range: 0 to 3000 PSI (0 bar to 207 bar, 0 to 20684.27 kPa)
Resolution: 0.1 PSI, 0.01 bar, 1 kPa
Over Pressure: 2 X full scaleFluke 717 5000G
Range: 0 to 5000 PSI (0 bar to 345 bar, 0 to 34474 kPa)
Resolution: 0.1 PSI, 0.01 bar, 1 kPa
Over Pressure: 2 X full scaleFluke 717 Series with Pressure Modules
Measure Pressure (via pressure module connector using optional Pressure Modules)
Range: 29 pressure modules, 0-1 inH₂O to 10,000 PSI, 2.5 mbar to 700 bar
Resolution: Per pressure module specs
Accuracy: Per pressure module specs
Functions: Zero, Min, Max, Hold, Damp
Current Range: 0 to 24 mA (-25% to 125%)
Resolution: 0.001 mA
Accuracy: 0.015% + 2 counts
Specifications
Loop Power Range: 24 V dc
Accuracy: +/- 10%
Note: Drive 20 mA into 1000 ohms for battery >6.8V; 700 W for battery 5.8 to 6.8 V
Display Clear 5 digit LCD
Environmental Specifications
Operating Temperature -10°C to 55°C
Storage Temperature -40°C to 60°C
Humidity (Without Condensation) 95% (10°C to 30°C)
75% (30°C to 40°C)
45% (40°C to 50°C)
35% (50°C to 55°C)
Operating Altitude 3,000 M max
Safety Specifications
Safety CSA C22.2 No. 1010.1:1992
Mechanical & General Specifications
Size 201 mm L x 98 mm W x 52 mm (7.93in. L x 3.86in. W X 2.06in.)
Weight 22 oz, approximately 600G with holster
Warranty 3 years
Shock & Vibration Random, 2G, 5-500 Hz
1m drop test
Battery type Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
