FoodPro And FoodPro Plus Food Safety Thermometers
Contact and non-contact temperature measurement.
FoodPro Thermometer Series provides a complete temperature measurement and monitoring solution for foodservice professionals.
Downloads
Fluke brings its test and measurement equipment expertise to the foodservice industry with contact and non-contact temperature measurement solutions. The new Fluke FoodPro Thermometer Series provides a complete temperature measurement and monitoring solution for foodservice professionals. It includes two useful temperature inspection tools, which are designed to enable foodservice professionals to quickly and accurately measure food product temperatures and to help detect potential food safety problems.
The Fluke FoodPro non-contact thermometer is the first line of defense against improper receiving, storage and holding temperatures. Using an infrared measurement technique, the highly accurate FoodPro quickly reads surface temperatures, allowing workers to make rapid and frequent temperature measurements – faster than contact units and without fear of cross contamination. The easy-to-see illumination light shows you the measurement area.
The Fluke FoodPro Plus combines the same infrared surface temperature scanner, as well as a probe thermometer and integrated countdown timer for complete inspections of food temperatures and monitoring cooking and cooling intervals.
Both FoodPro Series thermometers are hand-washable and feature unique HACCP check lights, which immediately indicate safe or potentially unsafe holding temperatures with either green or red lights.
Useful applications:
|
Fluke FoodPro Food Safety Thermometer
The easy-to-use and highly accurate Fluke FoodPro non-contact thermometer instantly measures surface temperature, allowing users to make rapid and frequent non-contact temperature measurements without risk of cross contamination.
|

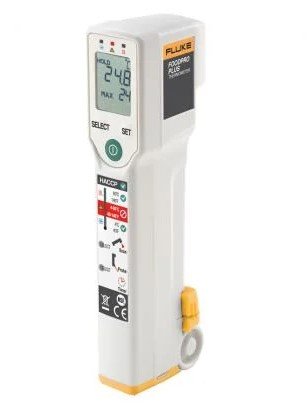

Fluke FoodPro Plus Food Safety Thermometer
The Fluke FoodPro Plus combines an infrared non-contact thermometer for surface scans with a probe thermometer for internal temperature readings. An integrated countdown timer with alarm monitors line checks as well as cooking and cooling intervals.
Includes all of the FoodPro features, plus the following:
|
Industrial Technical Services from Mississauga, Ontario is a single source Instrumentation and Automation company. We provide certified calibrations, PLC programming, custom controls and Panels.
Specifications & Spare Parts
| Infrared Specifications (Both) | |
|---|---|
| Temperature | Fluke FoodPro: -30 ºC to 200 ºC Fluke FoodPro Plus: -35 ºC to 275 ºC |
| Accuracy | (Assumes ambient operating temperature of 23 ºC ±2 º) Between 0 ºC and 65 ºC: ±1 ºC Below 0 ºC: ±1 º ±0.1 degree/degree Above 65 ºC: ±1.5 % of reading |
| Response Time | <500 ms after initial reading |
| Spectral Response | 8-14 microns |
| Emissivity | Pre-set for foodservice applications |
| Distance to Spot Size/Optical Resolution (D:S) | 2.5:1 @ 90% energy, typical |
| Typical Working Range (Target Illumination) | ≈25 mm to 250 mm |
| Minimum Target Size | 12 mm ø |
| Illumination to IR Channel Offset | 13 mm |
| Probe Specifications (FoodPro Plus) | |
|---|---|
| Temperature | -40 ºC to 150 ºC |
| Accuracy | (Assumes ambient operating temperature of 23 ºC ±2 º) Between -5 ºC and 65 ºC: ±0.5 ºC Below -5 ºC: ±1 ºC Above 65 ºC: ±1% of reading |
| Response Time | 7-8 seconds (3 time constants) |
| Probe Dimensions | Diameter: 3.0 mm Length: 90 mm |
| Sensor Type | Thin-film platinum, class A, Resistance Thermal Device (RTD) |
| Operational Specifications (Both) | |
|---|---|
| Repeatability | Within accuracy specifications of the unit |
| Ambient Operating Range | 0 ºC to 50 ºC |
| Relative Humidity | 90% (+/- 5%) RH non-condensing @ 30 ºC |
| Storage Temperature | -20 ºC to 60 ºC |
| Weight | FoodPro: 100 g (with battery) FoodPro Plus: 150 g (with battery) |
| Dimensions | FoodPro: 150 mm x 30 mm x 50 mm FoodPro Plus: 165 mm x 32 mm x 50 mm |
| Power, Battery Life | FoodPro: 1 AA alkaline FoodPro Plus: 9 V alkaline |
| Battery Life | 10 hours minimum @ 23 ºC |
| Target Illumination | High Brightness LED |
| Display Resolution | FoodPro: 4 digits, 0.2 ºC FoodPro Plus: 4 digits, 0.1 ºC |
| Display Hold (7 seconds) | Yes |
| LCD Backlit Display | FoodPro: No FoodPro Plus: Yes |
| Temperature Display | FoodPro: 4 digits, 0.2 ºC resolution FoodPro Plus: 4 digits, 0.1 ºC resolution |
| Maximum Temperature Displayed | FoodPro: No FoodPro Plus: Yes |
| Timer | FoodPro: No FoodPro Plus: Yes |
| Environmental Data | IP54 sealing (hand-washable, non-submersible) |
| Other Specifications (Both) | |
|---|---|
| Calibration Certificate | Calibration accuracy with NIST and DKD traceability |
| Standards | Conforms to EN 61236-1 Electromagnetic Emissions and Susceptibility, EN 6101-1 General Safety, Sealing IP54 (hand washable, non-submersible) |
| Certifications | CE NSF |
| Warranty | 2 years |
| Options/Accessories | Replacement probe (FoodPro Plus) |
At calibration geometry of 279 mm with a 140 mm diameter, 0.97 emissivity blackbody.
Specifications subject to change without notice.
