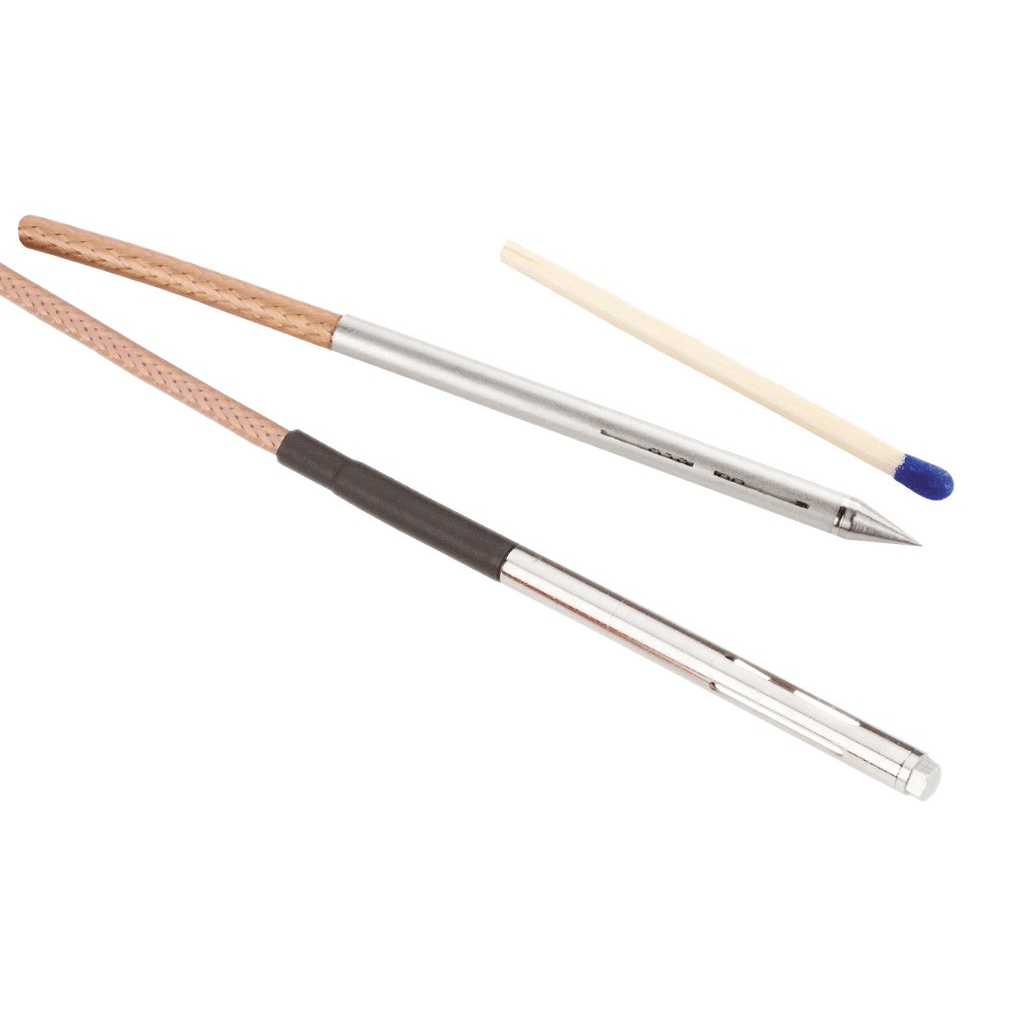

HC2-CO4/HC2-CO5 Compact Humidity Probe for Tight Spaces

Features

  • Range of application -100…200 °C / 0…100 %RH
  • Accuracy: ±0.8 %RH, ±0.1 K, at 23 °C ±5 K
  • Digital interface (UART) and scalable analog outputs, 0…1 V
  • GAMP compatible (HygroSoft Software)



Get a quote

The miniature probe is used for humidity and temperature measurement in confined spaces. It also calculates the dew and frost point and can be mounted discretely.

Applications
Museums, glass cabinets, building material tests, automotive and aviation industries, testing
laboratories, paper, textile and pharmaceutical industries

Specifications & Spare Parts

Probe type Cable probe
Operating range electronics -40…85 °C / 0…100 %RH
Accuracy at 23 ±5 °C at 23 °C / 10, 35, 80 %RH ± 1.5 %RH / ± 0.3 K
Power supply / Power consumption 3.2…5 VDC ±0 % / < 4.5 mA
Long-term sensor stability <1 %RH / year
Humidity sensor Hygromer IN-1
Temperature sensor PT100 1/3 DIN Class B
Response time t 63 <15 sec.
Allowed wind speed 3 m/s
Psychrometric calculations Dew or frost point
Reproducibility Airchip <0.02 %RH / 0.01 K
Exploitation software ROTRONIC HW4.2
Probe adjustment by software 1 Point & multipoint %RH & °C
Firmware update With internet and HW4 software
User information from Software HW4 (devicemanager)
Data processing via HW4 with interface cables
Device Protection by password Yes
Type of output signals 2 x 0…1 VDC
Analog outputs scaleable by the user Yes
Analog output signal (standard) 0…1 V = 0…100 %RH; 0…1 V = -40…60 °C
Digital output signal (standard) UART
Service Interface UART
Reverse voltage protection Mechanically in the connector
Probe material Stainless steel 1.4305 (V2A)
Probe cable material PTFE
Enclosure material Polycarbonate
FDA/GAMP compatibility FDA 21 CFR Part 11 and GAMP compatible
