Test & Measurement
Instruments
HP23-AW-A Portable Water Activity Meter Set
Features
- 2 input channels for HC2 station probes or HC2 insertion probes can be connected for measurement of water activity, relative humidity and temperature
- AW Quick function for fast measurement results (typically 4-5 minutes)
- Audible alarm to indicate completed measurement
- Saves up to 10,000 data records with %rh, °C, date and time
- Battery charging function
In many situations it can be very useful to measure water activity in production or storage rooms, e.g. inspection of bulk materials to ensure they meet specifications. The HygroPalm 23-AW-A is ideal for measuring water activity in production processes such as random checks of cheese, meat, tobacco, building materials, animal feeds, bakery products, paper, medicines, horticulture, agriculture, etc.
Applications
The HygroPalm HP23-AW-A offers the perfect solution for on-site water activity measurements to confirm product stability and indicate shelf life. The HP23-AW-A is suitable as a mobile laboratory unit. Equal to the HygroLab C1 the HP23-AW-A is perfect as a portable analyzer with two probe inputs for any suitable HC2 probe. The HP23-AW-A can also be used in conjunction with HW4-P-QUICK-Vx.
Portable and convenient
Handheld instrument specially configured to suit the water activity user. It includes many of the advanced features of the HygroLab C1, but in a convenient portable configuration.medicines, horticulture, agriculture, etc.

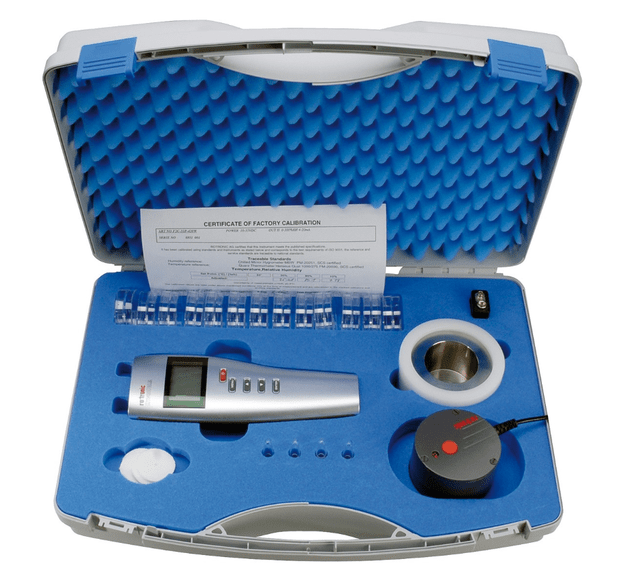

The Rotronic HP23-AW-A-Set-14 ships complete with:
•HC2-AW probe for the measurement of product samples
•WP-14-S sample holder
•PS14; 100 disposable sample cups, 14mm deep (0.55″)
•EA10; Humidity Standard 10%RH (Five vials per box)
•EA35; Humidity Standard 35%RH (Five vials per box)
•EA50; Humidity Standard 50%RH (Five vials per box)
•EA80; Humidity Standard 80%RH (Five vials per box)
•AC1124; Carrying Case
The Rotronic HP23-AW-A-Set-40 ships complete with:
•HC2-AW probe for the measurement of product samples
•WP40S; Dual 14mm/40mm sample cup holder (with insert)
•PS-40 disposable sample container (100pc)
•EA10; Humidity Standard 10%RH (Five vials per box)
•EA35; Humidity Standard 35%RH (Five vials per box)
•EA50; Humidity Standard 50%RH (Five vials per box)
•EA80; Humidity Standard 80%RH (Five vials per box)
•AC1124; Carrying Case
Specifications & Spare Parts
| Range of application | -10…60 °C (14…140 °F) / 0…1 Aw / 0…100 %RH |
| Power supply/Power consumption | 9 V battery or 9V power supply via mini USB, consumption <10 mA |
| Power supply | 9 V battery or USB/ mains adapter via mini USB |
| Current consumption | Max. 20 mA (backlight ON) |
| Calculations | All psychrometric calculations available |
| Number of probe inputs | 1 |
| Probe connections | 2 HygroClip2 or analog input 0…3.2 VDC (power supply for analog probe: 5 VDC) |
| Start-up time | 3 s |
| Measurement interval | 1 s, 10 s, 1 min, 10 min |
| Parameters shown | Aw, % RH, °C, °F |
| LCD | 3-line alphanumeric with trend indicators |
| Acoustical alarm (Beeper) | No |
| Battery indicator | Yes |
| Clock | Real time clock provides a time stamp for every measurement |
| Memory size | Capture mode: 8 x 250 values / Logging mode: 10,000 values |
| HW4 compatible | Yes, for all HW4 versions |
| Probe adjustment | Single or multiple point for relative humidity & temperature. One or two point temperature |
| Aw-quick mode | Yes |
| Aw Quick function | Integrated and via HW4 software HW4-P-QUICK-Vx (in shipment included) |
| Firmware update | With internet and HW4 software |
| Communication interfaces | Mini USB |
| Service Interface | Mini USB |
| Enclosure material | ABS |
| IP protection rating | IP30 |
| FDA / GAMP | FDA 21 CFR part 11 / GAMP5 |
| CE / EMC conform | EMC 2008/108/EG |
| Weight | 200g |
| Weight | 300.0000 |
