inventory_M2000A Lab Standard Voltage/Current Bench Calibrators (Copy)

An all around excellent value for a very stable and accurate benchtop calibrator

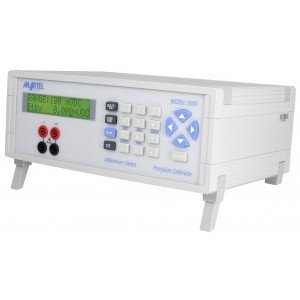

The Martel M2000A bench calibrator sets a standard in lab calibrator value – the M2000A features the accuracy and stability of calibration sources costing twice as much – and provides useful features no other calibrator offers in its class! Despite its world-class performance and powerful operating features, the M2000A calibrator is very simple to setup and use.

Simple Data Entry

The M2000A provides simple, front-panel control of output voltage or current using either direct keyboard entry or cursor entry.

The M2000A calibrator has an automatic OPERATOR/STANDBY function, which not only protects the device under test and the M2000A form overload conditions, but also provides UL/CSA certified safe operation when ranging to output voltages over 30V.

A second function key provides easy access for up to nine setpoints for each output range that can be recalled individually at the touch of a button, or can be stepped through automatically with control of the setpoint dwell time.

Remote Control

All of the M2000A operating functions can be accessed via RS-232 using a standard PC running Fluke Met/Cal® software, Windows® HyperTerminal, Visual Basic or any other software using an ASCII interface. An IEEE-488 bus interface is also standard.

Rock Solid

The M2000A stability and accuracy is traceable to NIST standards. The accuracy of the M2000A is specified for both 90-day and one year intervals.

General Features

• Superior calibration accuracy
• Direct keyboard entry or cursor entry with decade control
• Automatic standby function protects device under test
• Nine (9) manual/automatic setpoints per output range
• Local or RS232 remote control
• IEEE-488 (GPIB) port included
• Compatible with Fluke Met/Cal® software
• Optional rack/panle mount kit available
