Test & Measurement
Instruments

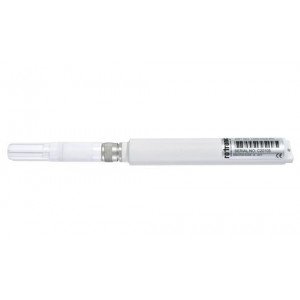

LOG-HC2-RC Wireless Data Logger
Features
- Interchangeable probe (compatible with all HC2 probes)
- Radio frequency: 915 MHz for optimum penetration through brickwork and walls
- The transmission frequency of 915 MHz is especially for the US market
- Flash memory for data security in the case of power failures
- Long-term recording up to 6 years without battery replacement
- Transmission distance with USB/LAN wireless adapter: up to 100 m
- Data security: PIN (for activation and data access)
- Temperature application range: -40 to + 85°C
- Plastic housing, white, IP65
Downloads
Both the ROTRONIC HW4 software and one of the available RF adapters are required to program the data logger, and to retrieve / analyze the data. HW4 can also be used to display and record data in real time on a PC or laptop. Each RF adapter can connect up to 100 loggers (wireless RF network). Both the HW4 software and data loggers are FDA 21 CFR Part 11 and GAMP compatible. A validated version of the HW4 software is available.
LAN-INTERFACE-US
915 MHz LAN interface with standard antenna
Manage up to 100 digital wireless data loggers
Network connection: RJ-45 connector at a 100 Mbps Ethernet LAN
Communication: via TCP/IP protocol
SMA connector for of external antenna
Configurable via web browser
LOG-DS-EXT-US
USB to 915MHz interface for wireless loggers
Standard USB
SMA connector
Interchangeable antenna
IP20 protection rating
Features
- Interchangeable probe (compatible with all HC2 probes)
- Radio frequency: 915 MHz for optimum penetration through brickwork and walls
- The transmission frequency of 915 MHz is especially for the US market
- Flash memory for data security in the case of power failures
- Long-term recording up to 6 years without battery replacement
- Transmission distance with USB/LAN wireless adapter: up to 100 m
- Data security: PIN (for activation and data access)
- Temperature application range: -40 to + 85°C
- Plastic housing, white, IP65
Specifications & Spare Parts
| Dimensions | 140 x Ø 20 mm |
| Weight | 80g |
| Operating range electronics | -40…85 °C / 0…100 %RH |
| Power supply / Power consumption | Lithium (Li-SOCl2) battery 2400 mAh |
| Number of probe inputs | 1 |
| Memory size | 2,048 KB of approximately 500,000 readings, non-volatile, even during a power outage |
| Exploitation software | ROTRONIC HW4.2 |
| Probe adjustment by software | Yes, with service cable |
| Data logging | 500,000 measured values with serial number, time and date |
| User information | from Software HW4 (devicemanager) |
| Data processing via HW4 | Yes |
| Device Protection by password | Yes |
| External datalogging | via software HW4 / PC |
| Choice of Battery / rechargeable battery | Lithium (Li-SOCl2) Battery 2400 mAh (Exchangeable) |
| Communication interfaces | LAN interface / USB dongle / GPRS logger |
| Enclosure material | POM |
| IP protection rating | IP65 |
| FDA/GAMP compatibility | FDA 21 CFR Part 11 and GAMP compatible |
