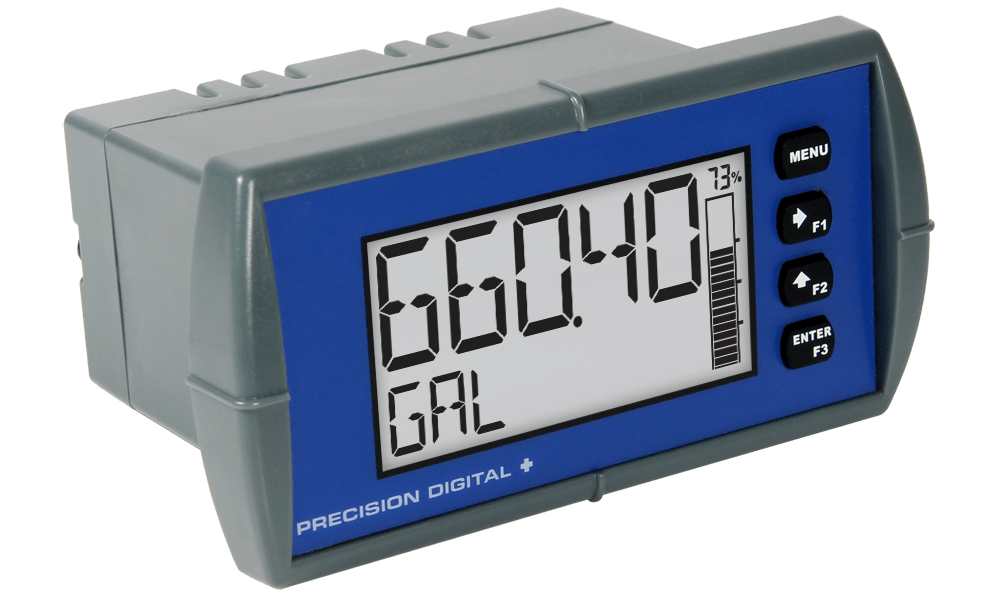

PD6600 Loop Leader Loop-Powered Intrinsically Safe & Nonincendive Process Meter

Features

  • 1/8 DIN Loop-Powered Process Meters with NEMA 4X, IP65 Front
  • 4-20 mA Input Displayed with ±0.02% FS Accuracy
  • 1.5 Volt Drop (4.5 Volt Drop with Backlight)
  • 0.7″ (17.8 mm) 5 Digits 7-Segment, FT-IN & Fractions, Top Display (PD6607)
  • 0.7″ (17.8 mm) 5 Alphanumeric Characters Top Display (PD6606/8)
  • 0.4″ (10.2 mm) 8 Alphanumeric Characters Bottom Display

Get a quote

Features

  • 1/8 DIN Loop-Powered Process Meters with NEMA 4X, IP65 Front
  • 4-20 mA Input Displayed with ±0.02% FS Accuracy
  • 1.5 Volt Drop (4.5 Volt Drop with Backlight)
  • 0.7″ (17.8 mm) 5 Digits 7-Segment, FT-IN & Fractions, Top Display (PD6607)
  • 0.7″ (17.8 mm) 5 Alphanumeric Characters Top Display (PD6606/8)
  • 0.4″ (10.2 mm) 8 Alphanumeric Characters Bottom Display
  • Displays Level in Feet & Inches up to 999 Feet, 11 & 15/16 Inches (PD6607)
  • 20-Segment Bargraph with Numeric Percent Indication, Optional
  • (2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
  • (2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
  • Stopwatch & Timer Functions to Drive Relays & Open Collectors
  • Optional Isolated 4-20 mA Analog Output
  • Relay Pump Alternation Based on Level and Runtime
  • Display Relay Runtime & Cycle Count via Relay Info Menu
  • Round Horizontal Tank Function; Just Enter Diameter & Length
  • 32-Point Linearization, Square Root Extraction and Programmable Exponent Function
  • Free PC-Based MeterView XL USB Programming Software
  • Loop-Powered Backlight with Red Backlight for Alarm Conditions
  • Safe Area Operating Temperature Range: -40 to 167°F (-40 to 75°C)
  • Conformal Coated PCBs for Dust & Humidity Protection
  • UL & C-UL 61010 Listed for Electrical Safety
  • UL & C-UL Listed as Intrinsically Safe and Nonincendive
  • ATEX and IECEx Certified as Intrinsically Safe
  • 3-Year Warranty

Specifications & Spare Parts

General

Programming Method Front panel & Free PC-based USB programming software
Enclosure & Materials Enclosure: 1/8 DIN, IP65, NEMA 4X front panel, high impact plastic,
NORYL® polyphenylene ether & polystyrene blend (PPE PS) resin, UL 94V-0,
Color: gray
Gasket: Silicone Rubber
Faceplate: LEXAN® polycarbonate (PC) Film
Buttons: Silicone rubber
Environmental Operating temperature range: -40 to 70°C (-40 to 158°F)
Storage temperature range: -40 to 85°C (-40 to 185°F)
Relative humidity: 0 to 90% non-condensing;
Printed circuit boards are conformally coated.
Noise Filter Averages the input signal over a period of time between 1 and 16 seconds to dampen the effects of a noisy signal that causes a jumpy display.
Filter Bypass 0.0 to 99.9% of full scale. Input signal changes greater than bypass value are displayed immediately.
Recalibration Recalibration is recommended at least every 12 months.
Max/Min Display Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
Tare Tare function zeros out the meter to accommodate for weight of a container. Tare function can be assigned to a function key or a digital input.
Password Programmable password restricts modification of programmed settings.
Non-Volatile Memory All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
Normal Mode Rejection 64 dB at 50/60 Hz
Connections Removable screw terminals accept 12 to 22 AWG wire.
Tightening Torque Screw terminal connectors: 4.5 lb-in (0.5 Nm)
Mounting screws: 8.0 lb-in max. (0.9 Nm)
Overall Dimensions 4.68″ x 2.45″ x 3.79″
(119 mm x 62 mm x 96 mm)
(W x H x D)
Weight 8.7 oz (247g) with option board
Warranty 3 years parts and labor. See Warranty Information and Terms & Conditions for complete details.
