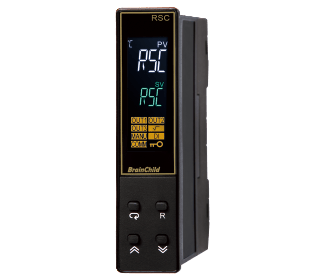

RSC Universal Input and Output Signal Converter
Features
- Optional LCD Display
- High Accuracy 18 Bit A-D Conversion
- Up to 3 retransmission outputs with 15 Bit resolution
- Fastest Sampling Rate of 200 msec
- Universal Input
- RS-485 Communication
The RSC is a specially designed signal conditioner which can accept an input from an universal input and output the conditioned signal. It is powered by an 11-26 or 90-250 VDC /VAC supply. The universal input is fully programmable for Linear Voltage, Linear Current, PT100 and thermocouple types J, K, T, E, B, R, S, N, L, U, P, C, and D input. The input signal is digitized by using an 18-bit A to D converter. Its fast sampling rate allows the signal conditioner to retransmit the signal faster. It can do a maximum of 3 retransmission with one input.
Specifications & Spare Parts
| Specification | |
|---|---|
| Resolution | 15 Bits |
| Accuracy | ±0.05% of Span ± 0.0025% / °C |
| Load Resistance | 0 to 500Ω for current output, 10KΩ minimum for Voltage Output |
| Output Regulation | 0.01% for full load change |
| Output Setting Time | 0.1Second (stable to 99.9%) |
| Isolation Breakdown | 1000VAC min |
| Integral Linearity Error | ±0.005% of span |
| Temperature Effect | ±0.0025% of span /°C |
| Saturation Low | 0mA or 0VDC |
| Saturation High | 22.2mA or 5.55V,11.1V min |
| Linear Output Ranges | 0 – 22.2mA (0 – 20mA/4 – 20mA), 0 – 5.55VDC (0 – 5VDC, 1 – 5VDC),0 – 11.1VDC (0 – 10VDC) |
