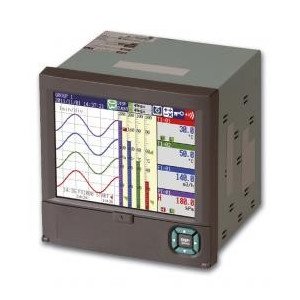

RX200 Videographic Paperless Recorder W/ Data Logging
Features
- Panel mount recorder: 144 x 144 mm
- Up to 12 recording channels
- Up to 12 alarm channels (optional):
- Intervals according to models
- Data storage in internal or CF card
- Mathematical functions (optional)
- 12 extra channels from comm. ports
- Periodical report functions
- Communication ports
- RS232/RS485 port: Modbus RTU master/slave
- Ethernet: Email, Web Server, FTP-Functions, DHCP, SNTP and ModBus TCP
- 5.7” LCD colour display
Specifications & Spare Parts
| Process Inputs | 2, 4, 6, 8, 10, 12 Recording Channels – Thermocouples: R, S, B, K, E, J, T, N, W, L, U, Wre, PR40-20, Platinel, NiNiMo, W/WRe26, Type N, Kp vs Au7Fe (optional) – RTD: PT100, JPt100, CU10 and Cu25 (optional), 3 legs isolated RTD (optional), Pt25, PT50, Ni100 (SAMA), Ni100 (DIN), J263*B, Cu53, Cu100 (optional) – Voltage (V): ±2V, ±6V, ±20V, ±50V – Voltage (mV): ±20mV, ±60mV, ±200mV – Current (mA): As voltage with shunt resistor – Digital (optional): Contact, DC voltage or TTL – Pulse: 3 channels up to 100 Hz |
| Additional Inputs (Optional) | – Digital: 5 remote points with configurable functions – Remote Inputs: 8 remote points with configurable functions |
| Process Outputs | 12 Alarm Output Channels (optional) – Relay: 0.1A 250Vdc or 3A 250 Vac according to model |
| Power Supply | – 90… 250 VAC |
| Functions | 3 Channels Measurement Interval: 250 ms 6, 12 Channels Measurement Interval: 1 up to 2s according to number of channels Data Storage Functions: * Internal Flash memory * Compact Flash memory card Mathematical Functions (optional): 12 (ch 2-4), 24 (ch 6-12) additional channels from communication ports Periodical Report Functions Isolation between input terminals (400 V) |
| Communication and Programming | Interfaces – RS232 / RS485 port: Modbus RTU master/slave – Ethernet: Email, Web Server, FTP-Functions, DHCP, SNTP, ModBus TCP |
| Installation | Mounting Method: Panel mount Case Dimensions: 144 x 144 x 163 mm Front Protection: IP65 |
| Display and Indicators | TFT 5.7″ Colour LCD Display |
