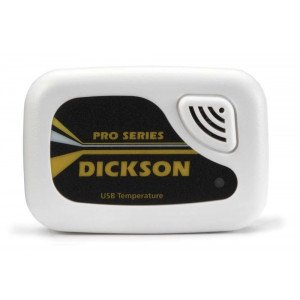

SP125 Temperature Data Logger
This temperature data logger excels in the widest range of applications, regulatory compliance, HVAC balancing, warehouse mapping, process control and more. Simple to set-up, easy to use and battery powered.
Features
- USB enabled fast downloading
- 32KB data storage
- User defined sampling rates – you determine how often it takes a reading
- Battery powered
Specifications & Spare Parts
| Alarm Type | LED Indicator; Visual |
| Ambient Operating RH Conditions | 0-95% RH non-condensing |
| Ambient Operating Temperature Conditions | -10 to 176°F (-23 to 80°C) |
| Battery Life (Avg) | 1 Year |
| Cable Details | USB – Male Series A plug to 5 pin Male Series B mini plug |
| Cable Length | 6 ft |
| Calibration Options | N100, N300, N400, N520 |
| Channels | CH1: Temperature |
| Data Capacity | 32,000 |
| Delayed Start | Yes |
| Dimensions | 0.9 x 2.1 x 3.1 in |
| Download Time | 1 Minute |
| Download Type | USB |
| IP Rating | 20 |
| Included Accessories | CR2450 Lithium Battery and Quick Start Guide. *Software is not included. |
| Minimum Software Version Required | 10.0 |
| PC Requirements | Microsoft Windows 98 or better; 16 MB RAM, 1 free USB root hub, CD drive, VGA monitor or better |
| Power Source | CR2450 Lithium Battery (User Replaceable) |
| Power Status Indicator | LED Indicator |
| Sample Interval | User Selectable (from 1 second to 24 hour intervals, in 1 second increments) |
| Software Options | A016, A026 |
| Temperature Accuracy | +/-1.2°F from -10 to 176°F (+/-0.7°C from -23 to 80°C) |
| Temperature Range | -10 to 176°F (-23 to 80°C) |
| Temperature Sensor Type | Thermistor |
| Unit Weight | 1 lb |
| Units/Pkg | 1 |
| Warranty | 12-Month Limited |
