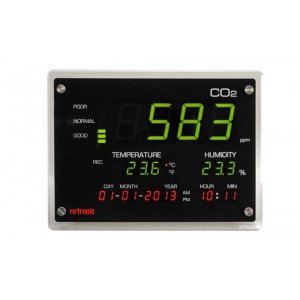

Wall-Mounted Or Bench-Top Indoor Air Quality Display
Features
- Measures and records CO2, relative humidity and temperature
- Accuracy ±2.5 %RH / ±0.3 K / ±30 ppm + 5% of measured value
- ROTRONIC HYGROMER® IN-1 humidity sensor
- 18,000 data point memory for CO2, humidity and temperature values
- Displays date and time
- Adjustable, visual CO2 indicator
- Large, easy-to-read display
- USB access for data download
Downloads
The wall-mounted or bench-top CO2 display is the latest development of a display unit that simultaneously measures and records CO2, humidity and temperature. Equipped with the ROTRONIC HYGROMER® IN-1 humidity sensor, this instrument offers unbeatable value for money. The instrument can be configured directly with buttons and stored data can be exported to a USB stick for analysis with the free ROTRONIC software package SW21.
Features
- Measures and records CO2, relative humidity and temperature
- Accuracy ±2.5 %RH / ±0.3 K / ±30 ppm + 5% of measured value
- ROTRONIC HYGROMER® IN-1 humidity sensor
- 18,000 data point memory for CO2, humidity and temperature values
- Displays date and time
- Adjustable, visual CO2 indicator
- Large, easy-to-read display
- USB access for data download
Specifications & Spare Parts
| Dimensions | 330 x 250 x 50 mm |
| Weight | 1400 g |
| Range of Application | 0…50 °C / 0…95 %RH, non-condensing |
| Accuracy at 23 ±5 °C | ±30 ppm ±5 % of the measured value, <2.5 %RH (10…90 %RH), ±0.3 °K |
| Measuring Range | 0…5000 ppm / 0…100 %RH / -20…60 °C |
| Measurement Principle | Infrared (NDIR) with automatic calibration (ABC) |
| Adjustment Points | 0, 400 ppm and 35, 80 %RH |
| Pressure Dependency | +1.6 % reading per kPa |
| Null Drift | <10 ppm/year |
| Power Supply / Power Consumption | AC adapter 12 VDC |
| Current Consumption | 700 mA (max) |
| Warm-up Time | <1 min |
| Long-term Sensor Stability | < 1.5 %RH per year |
| Humidity Sensor | ROTRONIC HYGROMER® IN-1 |
| Temperature Sensor | NTC |
| Response Time | CO2: <3 min. diffusion time / T°: 4s |
| Response Time t63 | <30 s, without filter |
| Parameters Shown | CO2, relative humidity, and temperature |
| Alarm Indicators | Adjustable for CO2 measurement |
| Clock | Real time clock |
| Memory Size | 18,000 values with time stamp, automatic recording (%RH / °C / ppm) |
| Housing | ABS |
| CE / EMC Conformity | 2004/108/EC |
| Maintenance | No maintenance (standard indoor application) |
