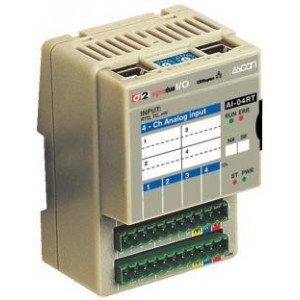

AI-04RT 4 Configurable Analogue Inputs Modbus-RTU Module
Features
- DIN rail mount
- Powerful embedded processing capabilities including Loop-back (input simulation) and alarms
Downloads
Related Products
These highly modular devices uniquely combine complete programmability, high performance analogue and digital I/O, into a series of powerful, compact and autonomous modules, with direct interface to any control unit (PCs, PLCs, DCS or Operator Panels).
Features
- DIN rail mount
- Powerful embedded processing capabilities including Loop-back (input simulation) and alarms
Specifications & Spare Parts
| Specifications | |
|---|---|
| Process Inputs | 4 T/C or RTD Inputs – Thermocouples: J, K, L, N, R, S, T – RTD: Pt100, Pt1000 – Voltage (V): ±1.0 V – Voltage (mV): ±50 mV, ±300 mV Accuracy: 0.1% Resolution: 16 Bit Insulation Class: 800V Acquisition Time: 120 ms |
| Power Supply | 24VDC (-15… +25%) |
| Functions | Embedded processing capabilities: – Linearisation – Scaling – Engineering unit conversion – Limits – Loop-back (input simulation) on Modbus version |
| Alarms | Two alarm thresholds |
| Communication and Programming | Interfaces: – 2 field bus ports to Modbus RTUProgramming/configuration tools: – Configuration software available for PC |
| Installation | Mounting method: DIN rail mount Case dimensions: 110 x 76 mm, Depth 76 mm |
| Connections | Communication port connection: – 2 FieldBus ports RJ45Signals connection: – 2 Extractable 11 pole plugs 5.0mm – Spring terminals – Screw terminals |
| Connectable to | – Sigmadue Series – SCADA for monitoring, traceability and remote management – DX and DY Gateways for remote monitoring |
