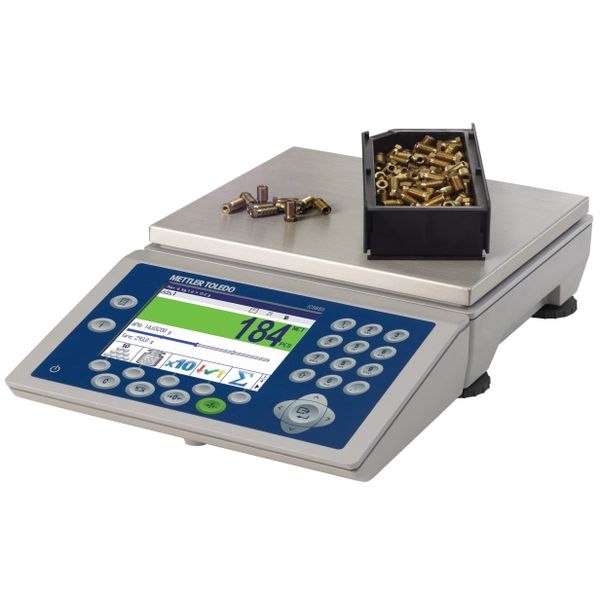

Specifications – Compact Scale ICS685s-3SM/f
| Maximum Capacity | 6 lb (3 kg) |
| Readability | 0.0005 lb (0.05 g) |
| Repeatability (sd) | 0.00007 lb (0.03 g) |
| Platform Size (LxHxW) | 7.9 in x 3.7 in x 9.5 in (200 mm x 95 mm x 240 mm) |
| Readability (Certified) | 0.001 lb (0.5 g) |
| Material | Aluminum die casting |
| Protection Rating | IP54 |
| Repeatability | 0.0001 lb |
| Hazardous Approval | No |
| Housing | Aluminum Die Casting |
| Interfaces | RS232 |
| Display | Color TFT screen |
| Repeatability, typical | 0.03 g |
| Repeatability, (typical) | 0.00007 lb |
| Application Software | Counting Dynamic weighing Formulation Over Under Checkweighing Simple weighing |
| Data Interface | Ethernet Serial USB |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP OIML |
| Applications | Counting Dynamic weighing Formulation Over Under Checkweighing Simple Weighing |
| Environment | Dry (<IP65) |
| Voltage | AC Version Battery Version |
| Scale Interface | SICSpro |
| Interfaces (Optional) | Discrete I/O Ethernet RS422 RS485 USB |
| Hygienic Design | No |
| Data Management | Comprehensive Statistics: Average Piece Weight, Min., Max. Values Fast Data Import & Export: With USB Stick or directly via Ethernet Powerful Database: Stores up to 5,000 articles Smart Printing: Predefined & User-definable print & label templates |
| Platform Type | Counting Scales |
