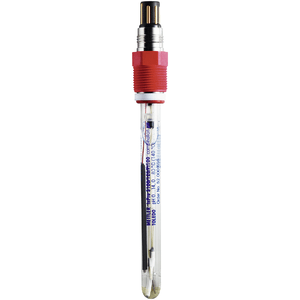

InPro3100/225/PT100pH Sensor
Features
- Rugged pH Sensor for Bioprocesses
- Gel Electrolyte Reduces Maintenance
- Sterilizable and Autoclavable
Gel-Filled Electrode for pH.The InPro 3100 is a pH electrode with temperature sensor, designed for measurement in bioprocesses where CIP and SIP procedures are required. The 225 mm version is optimal for medium installation lengths.
Rugged pH Sensor for Bioprocesses
The InPro 3100 offers stable measurement without risk of diaphragm clogging due to the patented Argenthal silver-ion trap reference system.
Gel Electrolyte Reduces Maintenance
This is a gel-filled electrode that provides effective, accurate pH measurement with low maintenance requirements.
Sterilizable and Autoclavable
This sensor provides fast and precise pH measurement even after repeated autoclaving and sterilization cycles.
Specifications & Spare Parts
| ISM (Digital) or Analog | Analog |
| pH Sensing Technology | Highly Alkali Resistant Glass Membrane for Tough Conditions (HA) |
| pH Range | 0 – 14 |
| Reference System | Gel electrolyte, ceramic diaphragm, Argenthal cartridge with silver-ion trap |
| Operating Temperature (Fahrenheit) | 32 °F – 176 °F |
| Operating Temperature (Celsius) | 0 °C – 80 °C |
| Cable Connector | VP |
| Process Connection | Pg 13.5 Thread |
| Sterilizable/Autoclavable | Yes |
| Sensor Length | 225 mm |
| Certificates & Approvals | CE METTLER TOLEDO Quality Certificate FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6 EHEDG ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb PED |
| Operating Pressure (Bar) | 0 to 6 barg @ 140 °C |
| Model Family | InPro3100(i) |
| Temperature Sensor | Pt 100 |
| Measurement Parameter | pH |
| Shaft Material | Glass |
| Operating Pressure (PSI) | 0 to 87 psig @ 284 °F |
| Refillable Electrolyte | No |
| Hazardous Area Approvals | Yes |
| Primary Media/Application | Pharmaceutical/Life Science Production |
| Hygienic/Biocompatibility Approvals | Yes |
