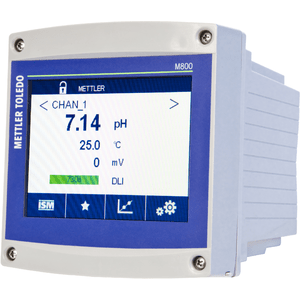

Transmitter M800 Process 1,2-CH PN
Features
Ease of Installation
Easy to install by following the Profinet Setup Guide.
Quick Startup and Sensor Replacement
For fast replacement, the M800 immediately recognizes the attached ISM sensor. Sensor and calibration history are transmitted directly to the M800.
Reduce Maintenance with Diagnostics
iMonitor on the M800 transmitter clearly displays the remaining sensor lifetime, time until calibration and other key diagnostics of ISM sensors.Less Effort to Operate
The full color, 5.7″ touchscreen of the M800 process transmitter makes it easy to operate.
The one-channel M800 Process is a multi-parameter transmitter with Profinet communication that provides high-performance, reliable measurement and offers the ability to integrate with a wide range of ISM sensors.
Intuitive Operation
The M800 Profinet 1-channel process transmitter uses a color touchscreen and intuitive menu structure for easy user training and operation.
Visualize Predictive Diagnostics
Easy access to sensor health via Profinet makes maintenance predictable and provides greater process reliability.
Faster Transfer and Reliable Management
Advanced diagnostics and faster transmission through Profinet for efficient and reliable plant management.
Specifications & Spare Parts
| Parameter(s) | Conductivity Dissolved CO2 Dissolved Oxygen Gas-Phase Oxygen ORP Optical DO Turbidity pH |
| Sensor Type | ISM |
| Current Output(s) Digital Output | None |
| Analog Inputs | 1 |
| Inputs (2) | 5 |
| Communication | ProfiNet |
| Hazardous Area Approvals | No |
| Approvals and Certificates | CE compliant UL (US & Canada) |
| Wired Mode | 4-Wire |
| Power Supply | 100 V to 240 VAC or 20 to 30 VDC, 10 VA |
| User Interface | 5.7 Color Touchscreen” |
| Relay Contact(s) | 2 |
| PID Controller | 2 |
| Channels | 1 |
| Enclosure Material | Polycarbonate |
| Protection Rating | IP66 |
| USB Interface | Yes |
| Size | ½ DIN |
| Languages | Chinese English French German Italian Japanese Korean Portuguese Russian Spanish |
| Primary Media/Application | Chemical Processes Food/Beverage Production Other Industrial Processes Other Water Processes Wastewater |
| Model Family | M800 Process |
