Transmitter M800 Process 1,2,4-CH SS
Features
Flexible and Consistent Platform
The one-channel M800 Process allows measurement of pH/ORP, conductivity, dissolved oxygen, dissolved carbon dioxide and turbidity.
Sensor Health Visualized with iMonitor
The transmitter constantly checks the condition of the connected sensor
Meet Compliance Requirements
Security in process automation instills confidence and integrity in a system.

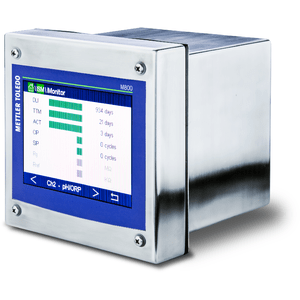

The single-channel M800 Process is a multi-parameter transmitter with a stainless steel enclosure that provides high-performance, reliable measurement and offers the ability to integrate with a wide range of ISM and analog sensors.
Intuitive Operation & Control
The M800 has a large, full-color touch screen interface and organized menu structure for easy operation with minimal training.
Secure Operation
The M800 has two levels of user-selectable security to restrict access to sensitive menus or functions, thus ensuring strong process security.
Predictive Diagnostics
Get easy access to ISM predictive diagnostics for your sensors, helping you to manage maintenance and extend the sensor life
Specifications & Spare Parts
Specifications – Transmitter M800 Process 1-CH SS
| Parameter(s) | Dissolved CO2 Turbidity pH Conductivity Gas-Phase Oxygen Optical DO Dissolved Oxygen ORP |
| Sensor Type | ISM Analog |
| Current Output(s) Digital Output | 8 x 0/4-20mA |
| Analog Inputs | 1 |
| Inputs (2) | 4 |
| Communication | None |
| Hazardous Area Approvals | No |
| Approvals and Certificates | UL (US & Canada) CE compliant |
| Wired Mode | 4-Wire |
| Power Supply | 100 V to 240 VAC or 20 to 30 VDC, 10 VA |
| User Interface | 5.7 Color Touchscreen” |
| Relay Contact(s) | 8 |
| PID Controller | 2 |
| Channels | 1 |
| Enclosure Material | Stainless Steel |
| Protection Rating | IP66 |
| USB Interface | Yes |
| Size | ½ DIN |
| Languages | English Italian French Russian Portuguese Chinese Korean German Spanish Japanese |
| Primary Media/Application | Other Industrial Processes Food/Beverage Production |
| Model Family | M800 Process |
