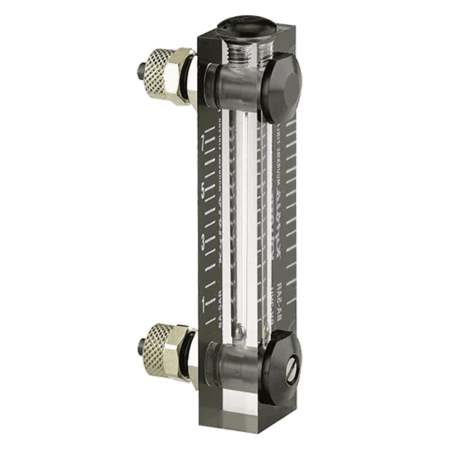

Variable area flow meter model BA
Main technical features of the Kytola BA variable area flow meter:
- for gas
- with valve
- machined acrylic body
- clear, easy to read scales
Industrial plastic tube variable area flow meter model BA
Kytola’s model BA measures and monitors low air flows with high precision. The finess of the flow meter lies in the skillfully manufactured components which ensure its accuracy and reliable operation in industrial applications. The body is made in one piece of precision-machined acrylic which prevents leaks as no attachments are required.
Special emphasis has been put into its user friendliness. The flow rate is easily read at a glance as the scales are clear. The flow meter unit is rapid to assemble and disassemble whenever maintenance is needed.
This variable area flow meter is an excellent and affordable choice for applications that require top notch precision in air flow measurement.
Specifications & Spare Parts
Technical data
| Model | BA |
| Body | Acrylic (PMMA) |
| Float | AISI 316 |
| Seals | Nitrile (*Viton®, EPDM) |
| Plugs | POM, aluminium |
| Valve housing | Aluminium |
| Valve spindle | AISI 316 |
| Connections G/NPT | Rapid fittings for o.d. 6 mm / 1.d. 4 mm hose |
| Max. pressure | 145 psi (10 bar) |
| Max. temperature | 167°F (75°C) |
| Accuracy | ±10% F.S. (H2O, +70°F/+20°C) |
| Weight | 2.1 oz (60 g) |
