Variable area flow meter model HK
Main technical features of the Kytola HK variable area flow meter
- for water and air
- without valve
- good corrosion resistance
- threaded or socket type connections

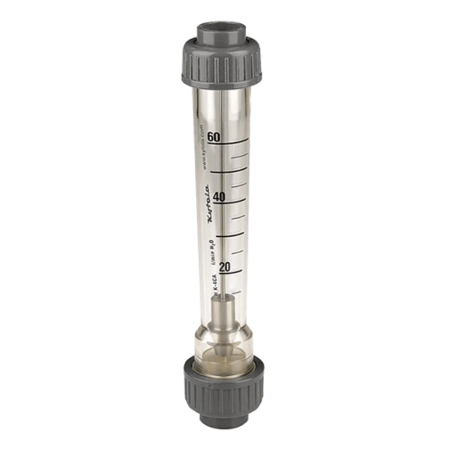

Industrial plastic tube variable area flow meter model HK
The acrylic variable area flow meter HK is an excellent choice for industrial flow measurement and monitoring of water and air flows. It is highly dependable and accurate.
Kytola’s model HK measures and monitors water and air flows in a variety of applications with high precision. The finess of the flow meter lies in the skillfully manufactured components, which ensure its accuracy and reliable operation in industrial applications. The flow meter has an injection molded impact resistant flow tube with threaded or socket type connections. The HK variable area flow meter has good corrosion resistance.
Special emphasis has been put into its user friendliness. The flow rate is easily read at a glance as the scales are clear. The flow meter unit is rapid to assemble and disassemble whenever maintenance is needed.
This variable area flow meter is an excellent and affordable choice for water and air flow measurement.
Specifications & Spare Parts
Technical data
| Model | HK |
| Flowtube | Grilamid (PA-12) or PES |
| Float | AISI 329 or AISI 329/PTFE (depending on range) Note! Other possible wetted metal parts: AISI 316 |
| Seals | Nitrile (*Viton®, EPDM) |
| Connectors | PVC |
| Connection size | G/NPT 3/4″ or 0.98″ (25 mm) socket |
| Max. pressure | 145 psi at 68°F (10 bar at 20°C) |
| Max. temperature | 167°F at 29 psi (50°C at 2 bar) |
| Accuracy | ±5% F.S. (H2O, +70°F/+20°C) |
| Weight | 10 oz (280 g) |
