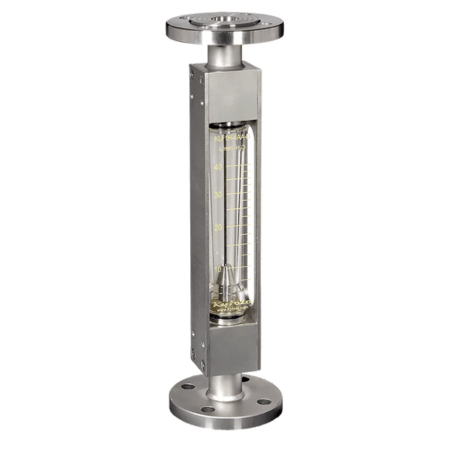

Variable area flow meter model KLFH

Main technical features of the Kytola KLFH variable area flow meter:

  • for liquid or gas
  • without valve
  • stainless steel body and side plates
  • flange connections DN or ANSI
  • alarm-ready

Get a quote

Industrial plastic tube variable area flow meter model KLFH

The acrylic variable area flow meter KLFH is an excellent choice for industrial flow measurement and monitoring of liquids and gas flows. It is highly dependable and accurate.

Kytola’s model KLFH measures and monitors liquid and gas flows in a variaty of applications with high precision. The finess of the flow meter lies in the skillfully manufactured components which ensure its accuracy and reliable operation in industrial applications. The flow meter has an injection molded impact resistant flow tube with DN or ANSI flange connections. The KLFH variable area flow meter has good corrosion resistance.

Special emphasis has been put into its user friendliness. The flow rate is easily read at a glance as the scales are clear. The flow meter unit is rapid to assemble and disassemble whenever maintenance is needed.

This variable area flow meter is an excellent and affordable choice for non-corrosive liquid and gas flow measurement.

Specifications & Spare Parts

Technical data

Model KLF1H KLF2H
Body AISI 316 AISI 316
Flowtube Grilamid (PA-12) (*PES) Grilamid (PA-12) (*PES)
Float AISI 329 Note! Other possible wetted metal parts: AISI 316 AISI 329 Note! Other possible wetted metal parts: AISI 316
Seals Nitrile (*Viton®, EPDM) Nitrile (*Viton®, EPDM)
Connections G/NPT DN25 PN25, ANSI 1″ 150 lbs flanges DN40 PN25, ANSI 1½” 150 lbs flanges
Max. temperature 176°F (80°C), *248° (*120°C) 176°F (80°C), *248° (*120°C)
Accuracy ±5% F.S. (H2O, +70°F/+20°C) ±5% F.S. (H2O, +70°F/+20°C)
Weight 11 lbs (5.1 kg) 14 lbs (6.3 kg)
